Technology

Functional surfaces through nanostructures

At nanoshape we developed a new technology to create functional surfaces without applying coatings or foreign materials. Instead, we modify the topography of the material surface creating specific nano- or microstructures while the base material remains unchanged. The modified topography leads to new functions such as reduced bacterial adhesion, improved fluid behaviour, or increased wear resistance.

How it works

To create a specific topography we use our proprietary, patent-protected technology that is based on hydrothermal oxidation. Hereby we modify the top layer of the surface - for example titanium or aluminum - under controlled temperature and pressure. The results are stable nano- or microstructures that emerge directly from the material itself and exhibit extraordinary physical, chemical and/or biological properties.

Unlike laser or other structuring methods nanoshape is a diffusion-based process that enables industrial batch processing and ensures a uniform surface even on complex geometries or parts with existing microstructures like SLA-implants.

By tuning process parameters we can create specific topographies tailored to different functional requirements - from superhydrophilic properties to bacteria repelling effects.

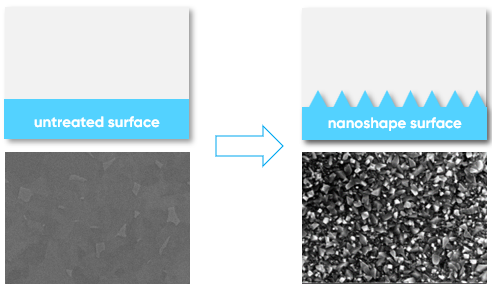

Schematic overview of the nanoshape principle and corresponding Scanning Electron Micrographs (SEM) of an untreated titanium surface and a surface treated with the nanoshape technology.

no coatings,
no additives

Pure surface modification - long-term stability, no degradation over time.

compatible with
complex geometries

Suitable for curved, porous, or even micro-structured parts.

mechanically
robust

Surfaces withstand real-world mechanical and chemical stress.

scalable and
industry-ready

Designed for series production as a batch process as one of the final steps in production.

Key surface properties

Inspired by nature

Nature demonstrates that surface topography alone can create remarkable functionalities: from the water-repellent lotus leaf to the bacteria-repellent wings of a dragonfly. These effects emerge not from coatings or chemical treatments, but from the structure of the surface itself.

With nanoshape, we translate this principle into a robust, industry-ready technology: our process allows us to create defined nanostructures directly on technical and medical components, enabling new properties without replacing the base material or adding expensive materials. It's a simple yet powerful way to engineer surfaces with better functions – inspired by nature designed for real-world use.

Thinking about improving your surface performance?

We help you identify the right nanostructure to achieve the functionalities you need. Whether you're looking for ideas or already have a specific goal in mind: we support you from initial testing to implementation, working closely to tailor a solution to your application.
